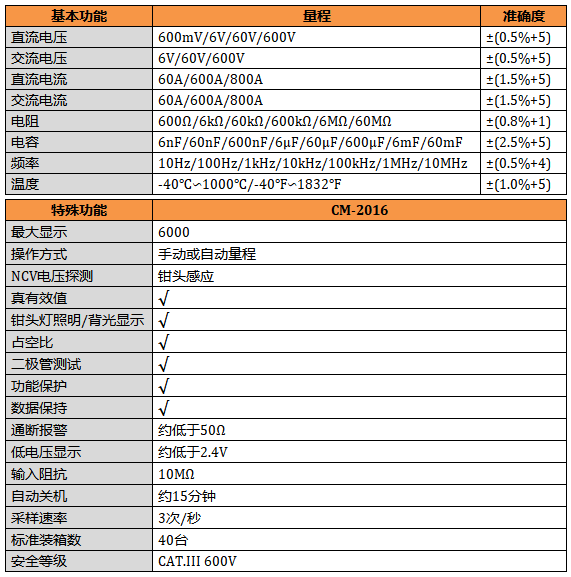

| 基本功能 | 量 程 | 基 本 准 确 度 | |||

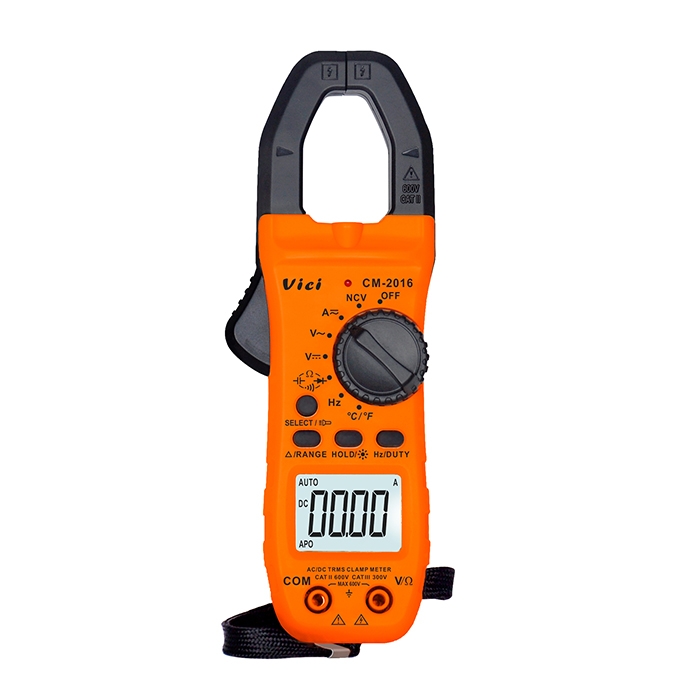

| CM-2000B | CM-2000C | CM-2007 | CM-2016 | ||
| 直流电压 | 200mV/2V/20V/200V/600V | ±(0.5%+5) | ±(0.5%+5) | ||
| 400mV/4V/40V/400V/600V | ±(0.5%+5) | ||||
| 600mV/6V/60V/600V | ±(0.5%+5) | ||||
| 交流电压 | 2V/20V/200V/600V | ±(1.0%+5) | |||
| 4V/40V/400V/600V | ±(1.0%+5) | ||||
| 6V/60V/600V | ±(0.5%+5) | ||||
| 直流电流 | 60A/600A/800A | ±(1.5%+5) | |||
| 交流电流 | 2A/20A/200A/600A | ±(2.0%+5) | ±(2.0%+5) | ||
| 4A/40A/400A/800A | ±(2.0%+5) | ||||
| 60A/600A/800A | ±(1.5%+5) | ||||
| 电 阻 | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(0.8%+1) | ±(0.8%+1) | ||
| 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(0.8%+3) | ||||
| 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(0.8%+1) | ||||
| 电 容 | 4nF/40nF/400nF/4μF/40μF/400μF/4mF/40mF | ±(2.5%+5) | |||
| 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF | ±(2.5%+5) | ||||
| 频 率 | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | ±(0.5%+4) | ±(0.5%+4) | ||
| 温 度 | -40℃∽1000℃/-40℉∽1832℉ | ±(1.0%+5) | ±(1.0%+5) | ±(1.0%+5) | |
