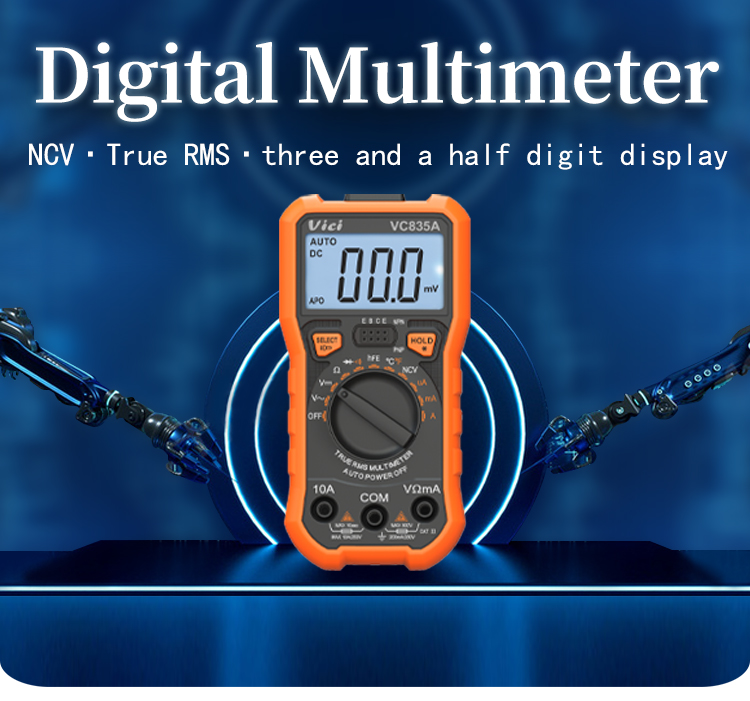

VC835A True RMS, NCV tests, Data hold, Backlight, Torch lighting function.

 VC835A multimeter, available to DC voltage, AC voltage, DC current, AC current, Resistance, Non-contact voltage (NCV), Temperature, hFE, Diode and Continuity tests; Designed with unit symbol, Backlight display, Data hold, Torch lighting, Auto ranging switch, Auto power off and Alarm functions.

1999 digits display



    Technical Data:

    Basic function

    Range

    Basic Accuracy

    DCV

    200mV/2V/20V/200V/600V

    ±(0.5%+4)

    ACV

    2V/20V/200V/600V

    ±(0.8%+6)

    DCA

    200uA/2000uA/20mA/200mA/2A/10A

    ±(1.0%+5)

    ACA

    200uA/2000uA/20mA/200mA/2A/10A

    ±(1.5%+5)

    Resistance

    200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

    ±(0.8%+1)

    Temperature

    -401000

    ±(1.0%+5)


    Special Function:

    Model

    VC835A

    NCV

    Data hold

    True RMS

    Function protection

    Torch function

    Backlight display

    Diode test

    0V~2V, it displays “OL” if over 2V

    Continuity alarm

    Less than 50Ω, it displays “OL” if over 10Ω

     hFE Test

    0~2000

    Low battery indicator

    Approx. less than 2.4 V

    Auto power off

    About 15 minutes

    Input impedance

    10

    Sampling rate

    3 times/s

    AC frequency response

    40Hz-2kHz

    Operation method

    Manual or Auto range

    Max. display

    2000

    LCD size

    61*28mm

    Battery

    3V  AAA*2

    Power consumption

    Quiescent current about 2mA
