1. 3 1/2 Digits LCD
2. Over Load: LCD display "OL"
3. Battery Life: Approximate 100 hours
4. Data hold, Back-light, REL value tests
5. CAT.III 1000V / CAT.IV 600V security level

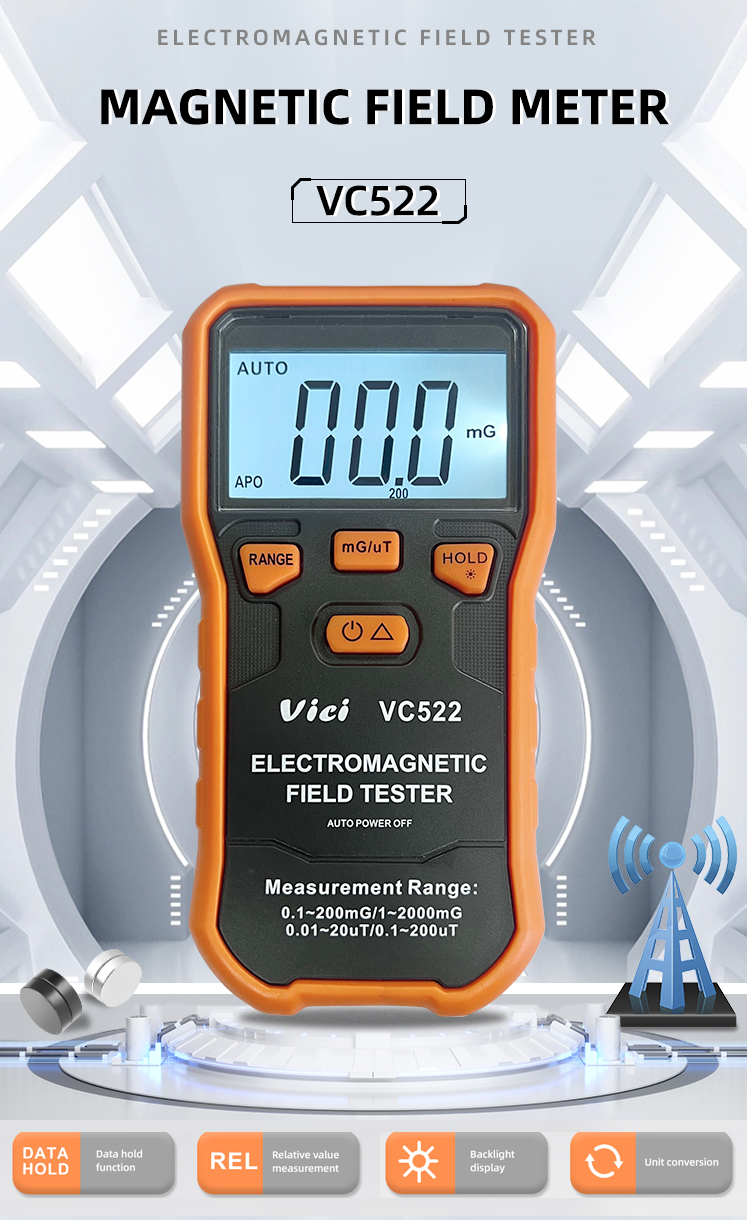

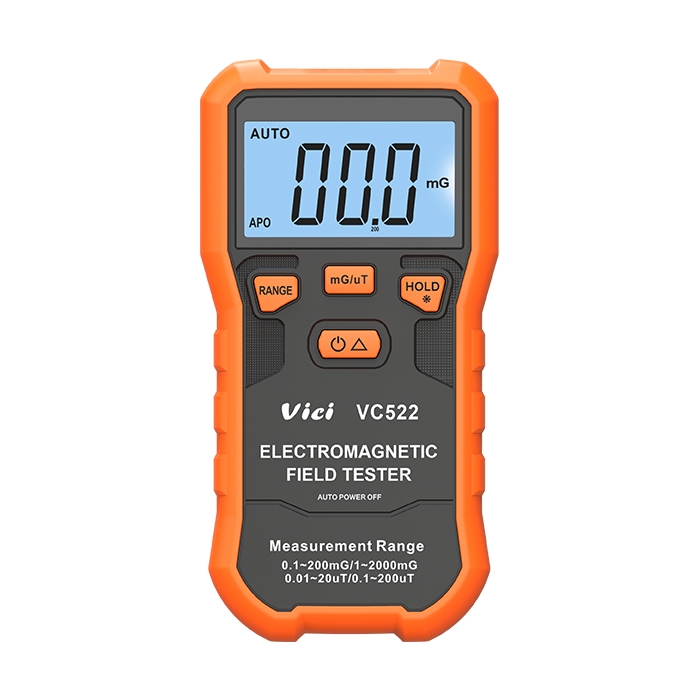

VC522 Household electromagnetic radiation measuring instrument EMF Meter, Data hold, Backlight and REL test functions.
VC522 This meter is applied to measuring electromagnetic fields of extremely low frequency (ELF) of 30 to 1kHz. It is capable of measuring the electromagnetic field radiation intensity that is produced from electric transmission equipment, power line, microwave oven, air conditioner, refrigerator, computer monitor, video/audio/network device and so forth. The magnetic field unit is Tesla (T), Gauss (G), milli-Gauss (mG) or micro-Tesla (μT).
Technical specifications:
|
Range |
200/2000mG, 20/200uT |
|
Resolution |
0.1/1mG or 0.01/0.1uT |
|
Frequency Response |
30~1000Hz |
|
Sensor |
Single Axis |
|
Accuracy |
+(2.5%+6dgt) at 50Hz/60Hz |
|
Sample rate |
2.5 times per Second |
|
Operating Temperature & Humidity |
5~40°C, below 80% RH |
|
Storage Temperature & Humidity |
-10~60°C, below 70% RH |
|
Altitude |
<2000m |
|
Security level/phase |
CAT.III 1000V / CAT.IV 600V |
|
Power supply |
2×1.5V AAA battery |
General Info:
|
Meter color |
Orange and Grey |
|
Meter weight |
195g（including battery） |
|
Meter size |
140×72×37mm |
|

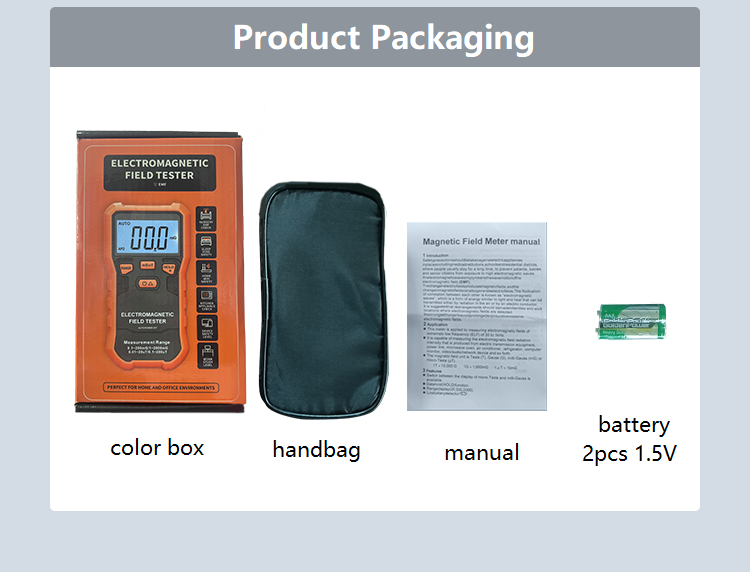

Standard accessory |
Battery, manual |
|
Standard packing |
|
|
Quantity per carton |
40pcs |
|
GW per carton |
15kg |
|
Carton size |
37.5*29.5*42cm |
