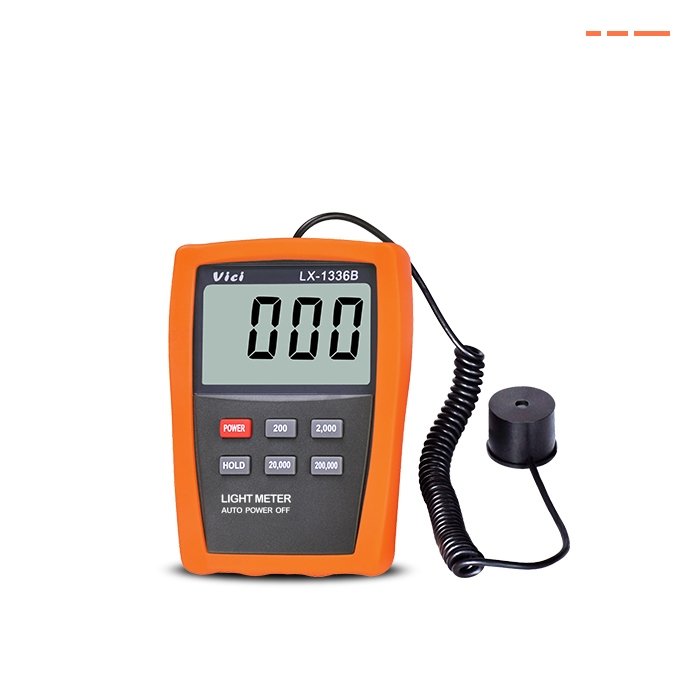

LX-1336B Screen Brightness Digital Illuminometer, Color Temperature 2856K standard calibration, Data hold, Intelligent Auto Power OFF.

   LX-1336B screen brightness meter is mainly used to test the luminous brightness of various backlights such as televisions, computers, and mobile phone screens. It can test whether the light intensity of each distribution point of the effective area of various backlights is uniform, test the brightness of televisions, computers, and mobile phone screens, prevent eye damage, and play a certain role in eye protection for students and children.


    Technical Data:

    Range

    Accuracy

    Result

    20 cd

    ±5% rdg ± 10.

    Reading

    200 cd

    Reading

    2,000 cd

    reading

    20,000 cd

    10×reading


    Special Function:

    Model

    LX 1336B

    Repeatability

    ±2%

    Temperature characteristic

    ± 0.1%/

    Auto zero-adjustment

    Data Hold

    Low battery indication

    Auto power off

    Sensor

    Photo diode and filter

    Sampling rate

    2 times/second

    Resolution

    0.01 cd

    Operation way

    Manual range

    Max. Display

    1999

    LCD size

    67×40mm

    Battery

    9V (6F22)
