Revealing the "Silent Killers" Behind Home Appliances, Electric Vehicles, and Industrial Motors --The VC4060C Motor Tester diagnoses your motor faults no hidden
Time:2025-08-22
Views:107
Are you tired of unexpected equipment failures with your home appliances, electric vehicles, or industrial machinery? The VC4060C Motor Checker is a professional, easy-to-use tool designed to identify the hidden issues—the "silent killers"—inside motors.
Problem 1: Motor Failure
Motor windings are essential for operation, wound with conductive cooper wire, like the "blood vessel" of the motor.
*Open Circuit: A break in the winding stops current flow, causing the motor to fail.
*Inter-turn Short Circuit: A hidden fault that the current takes a "shortcut," causing localized overheating, potentially burning out the motor.

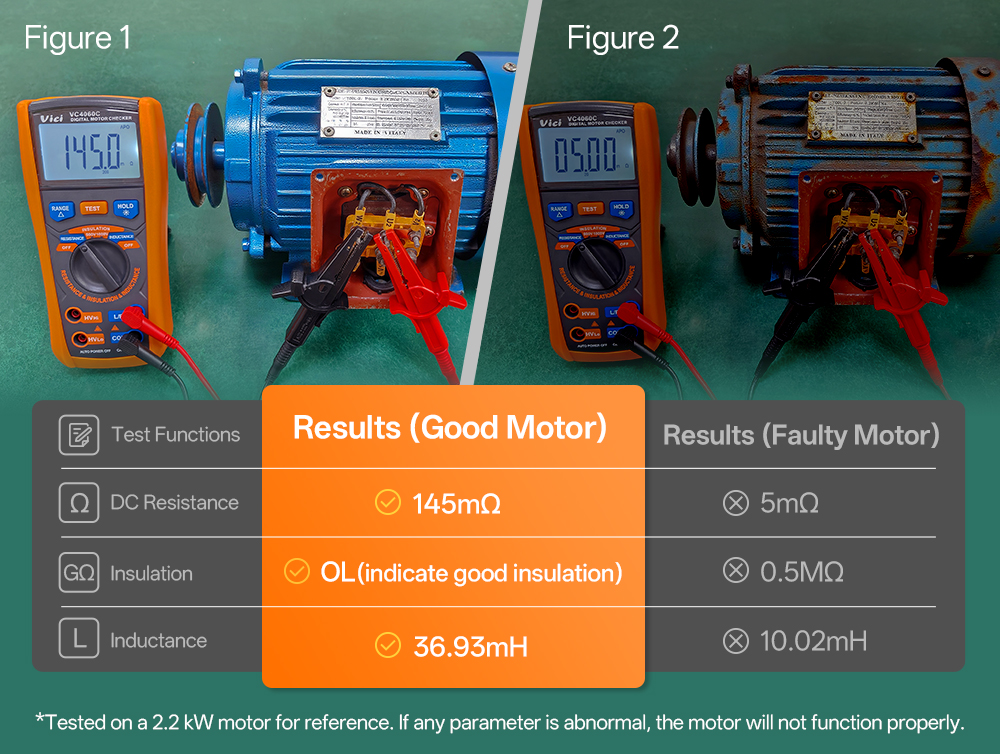

The most intuitive way to find these problems is by measuring DC resistance.The VC4060C uses DC resistance measurement to find these problems. Its milliohm-level measurement and 0.1 mΩ resolution at the 200 mΩ range can detect subtle changes.
Problem 2: Electrical Leakage
A motor‘s insulation layer prevents current leakage and ensures safety. Deterioration from moisture or heat can lead to leaks, short circuits, or electric shock.
Insulation performance can be accurately judged by testing insulation resistance.The VC4060C performs insulation resistance tests with 500V and 1000V voltages to accurately assess insulation and prevent motor burnout.
Problem 3: Undiagnosed Motor Issues
When a motor shows signs like reduced efficiency or abnormal heating without clear faults, it may have hidden winding damage.
In such cases, inductance measurement is a deeper diagnostic method. The VC4060C can measure inductance up to 99.99H, which helps diagnose internal winding changes and deep-seated issues that are difficult to find otherwise.
User-Friendly Design
The VC4060C motor checker combines milliohm resistance, insulation resistance, and inductance testing. It features a backlit display, data hold, auto-ranging, and auto-power-off, making it easy to use. It serves as a reliable "motor doctor", whether for household appliances, new energy electric vehicles, or industrial production equipment, which can locate faults, improve maintenance efficiency, extend the lifespan of equipment, and make your life and work smoother.
Learn More:
•Inquire now for sample trial/distribution partnership
•Let the VC4060C solve your motor problems and improve both efficiency and safety!
