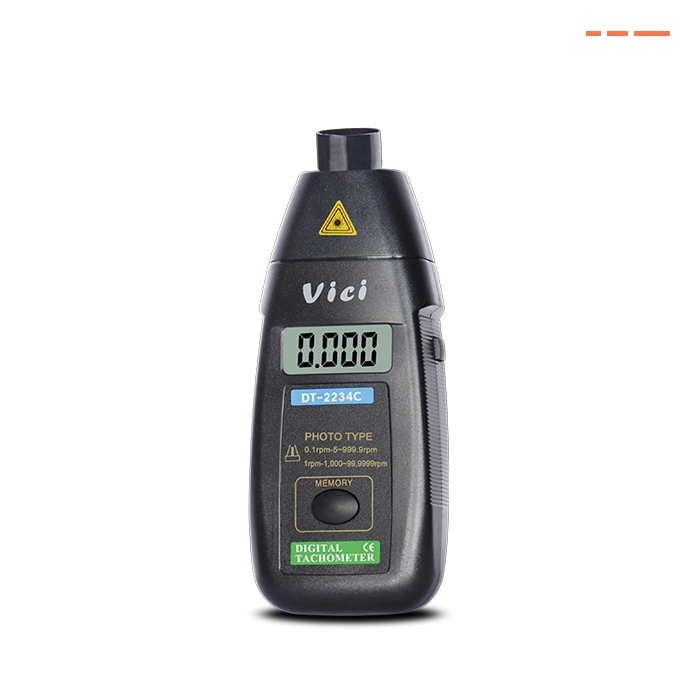

DT-2234C Laser non-contact RPM testing Tachometer, Automatically memory Max/Min/Last value, Automatically store data.

   DT-2234C  non-contact laser rpm tachometer is used for touchless speed testing of rotors such as various engines, motors, speed control devices, etc. It is used in the debugging of various devices such as aircraft, ships, emmobiles, automobiles, model aircraft, and toys.



    Technical Data:

    Basic function

    Range

    Basic Accuracy

    Laser rotation speed

    2.599999RPM(r/min)

    ±0.05%+1 digit



    Special Function:

    Model

    DT-2234C

    Measuring way

    Non-contact laser

    Resolution

    0.1RPM(2.5999.9RPM), 1RPM(over 1000RPM)

    Sampling time

    0.8s(over 60RPM)

    Range selection

    Auto switch

    Effective distance

    50mm 500mm

    Power Consumption

    Max. 45mA

    Memory

    Auto memory Max./Min. last value and last value.

    Time Base

    6MHz Quartz crystal

    Accuracy of time base

    10×10-6 (050)

    Battery

    4X1.5V AA Size Battery

    Max. display

    99999

    LCD size

    5digits 18mm
