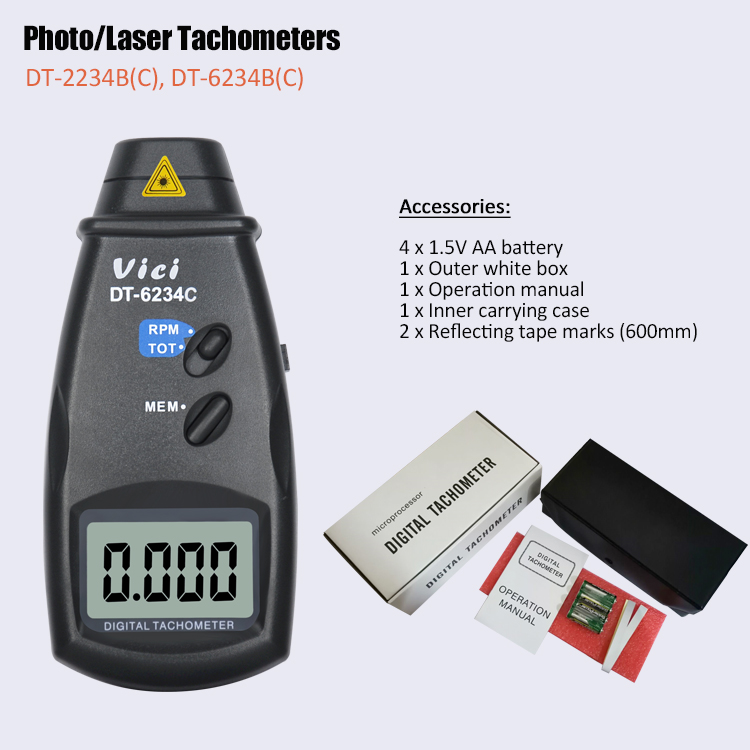

DT-6234C Laser Tachometer, Automatically memory Max/Min/last value, Automatically store datas.
DT-6234C laser digital tachometer is used for touchless speed testing of rotors such as various engines, motors, speed control devices, etc. It is used in the debugging of various devices such as aircraft, ships, emmobiles, automobiles, model aircraft, and toys.
Technical Data:
|
Basic function |
Range |
Basic accuracy |
|
Laser photoelectric rotation speed |
2.5～99999RPM(r/min) |
±(0.05%+1digit) |
Special Function:
|
Model |
DT |
|
Measuring way |
Laser photoelectric |
|
Resolution |
0.1RPM(2.5～999.9RPM) 1RPM(over 1000RPM) |
|
Cumulation function |
1～99999 |
|
Sampling time |
0.5s(over 120RPM) |
|
Range selection |
Auto switch |
|
Effective distance |
50mm ～ 500mm |
|
Power Consumption: |
Max. 55mA |
|
Memory |
Auto memory Max./Min. last value and auto store 96teams data |
|
Time Base |
6MHz Quartz crystal |
|
Accuracy of time base |
10×10-6 ( |
|
Battery |
3X1.5V AA Size Battery or to external DC 4.5V |
|
Size |
160mm× |
|
Max. display |
99999 |
|
LCD size |
5digits |
|
Backlight |
Optional |
