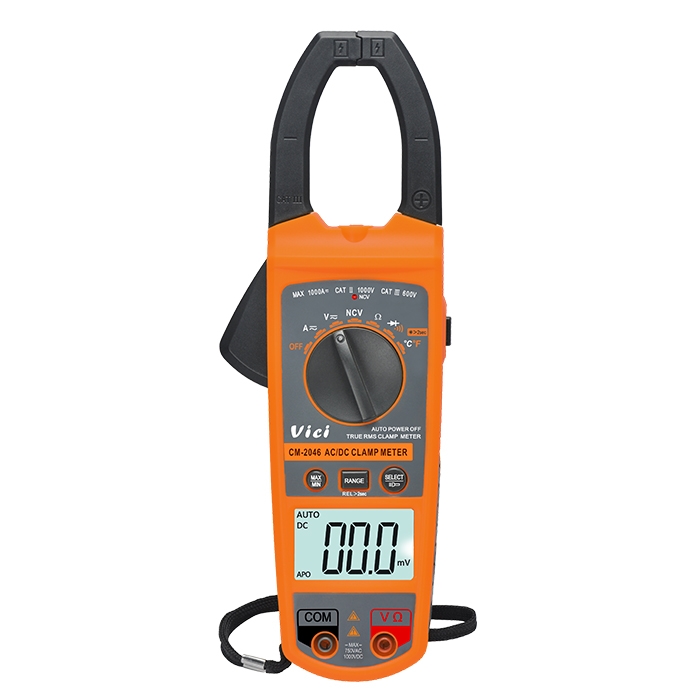

CM-2046 Clamp open 52mm, 1000A AC DC, True RMS, NCV, Temperature tests, Backlight, Clamp lighting function.

    CM-2046 clamp meter, DC voltage, AC voltage, DC current, AC current, resistance, non-contact voltage (NCV), temperature, true RMS, diode and continuity tests; Designed with unit symbol and backlight display, data hold, clamp lighting, auto ranging switch, auto power off and alarm functions.
     2000 digits display

    Technical Data:

    Basic function

    Range

    Accuracy

    DCV

    200mV/2V/20V/200V/1000V

    +/- (0.5%+5)

    ACV

    200mV/2V/20V/200V/750V

    +/- (1.0%+5)

    DCA

    200A/1000A

    +/- (2.0%+5)

    ACA

    200A/1000A

    +/- (2.0%+5)

    Resistance

    200/2k/20k/200k/2M/20M ohm

    +/- (0.8%+1)

    Temperature (-40~1000)℃ / (-40~1832)℉ +/- (1.0%+5)


    Special Function:

    Model

    CM-2046

    NCV test

    YES

    True RMS test

    YES

    Diode test

    YES

    Continuity test

    Less than 50ohm

    Low battery indicator

    Approx. less than 2.4 V

    Data hold

    Data hold/ Max value hold

    Auto power off

    About 15 minutes

    Function protection

    YES

    Clamp light display

    YES

    Backlight display

    YES

    Input impedance

    10M ohm

    Sampling rate

    3 times/s

    AC frequency response

    Current 50-60Hz/ voltage 50-400Hz

    Operation method

    Auto or manual range

    Max display

    1999

    Clamp opens

    52mm

    Battery

    3V (2*AAA battery)
