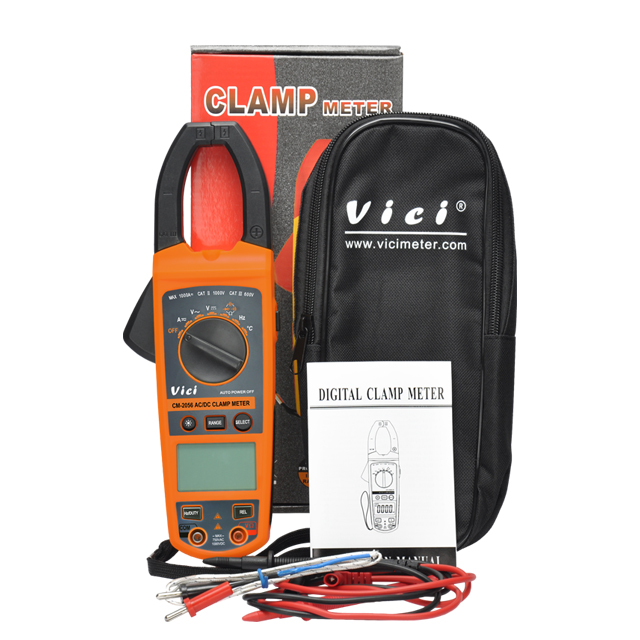

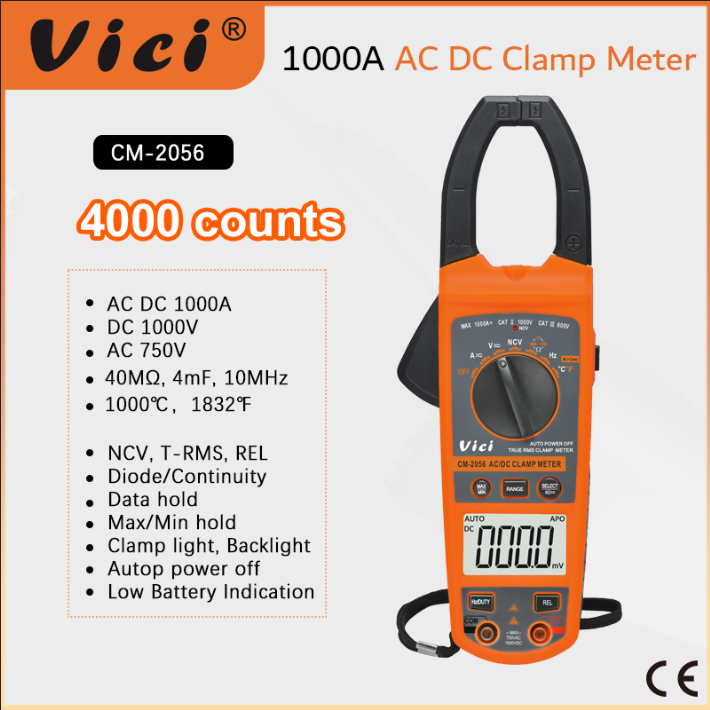

CM-2056 Clamp open 52mm, 1000A AC DC, True RMS, NCV, Capacitance, Frequency, Temperature tests, Backlight, Clamp lighting function.

    CM-2056 clamp meter. available to DC voltage, AC voltage, DC current, AC current, resistance, capacitance, frequency, non-contact voltage, temperature, diode and continuity tests; Designed with unit symbol and backlight display, data hold, clamp lighting, auto ranging switch, auto power off and alarm functions.
    4000 digits display



    Technical Data:

    Basic function

    Range

    Accuracy

    DCV

    400mV/4V/40V/400V/1000V

    +/- (0.5%+5)

    ACV

    400mV/4V/40V/400V/750V

    +/- (1.0%+5)

    DCA

    40A/400A/1000A

    +/- (2.0%+5)

    ACA

    40A/400A/1000A

    +/- (2.0%+5)

    Resistance

    400/4k/40k/400k/4M/40M ohm

    +/- (0.8%+3)

    Capacitance

    4nF/40nF/400nF/4uF/40uF/400uF/4mF/40mF

    +/- (3.5%+10)

    Frequency

    10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz

    +/- (0.5%+5)

    Temperature

    (-40~ 1000) -40~1832℉)

    +/- (1.0%+5)


    Special Function:

    Model

    CM-2056

    NCV test

    YES

    True RMS test

    YES

    Diode test

    YES

    Continuity test

    Less than 30ohm

    Low battery indicator

    Approx. less than 2.4 V

    Data hold

    YES

    Auto power off

    About 15 minutes

    Function protection

    YES

    Clamp light

    YES

    Backlight display

    YES

    Input impedance

    10M ohm

    Sampling rate

    3 times/s

    AC frequency response

    Current 50-60Hz/ voltage 50-400Hz

    Operation method

    Auto or manual range

    Max display

    4000

    Clamp opens

    52mm

    Battery

    3V (2*AAA battery)
