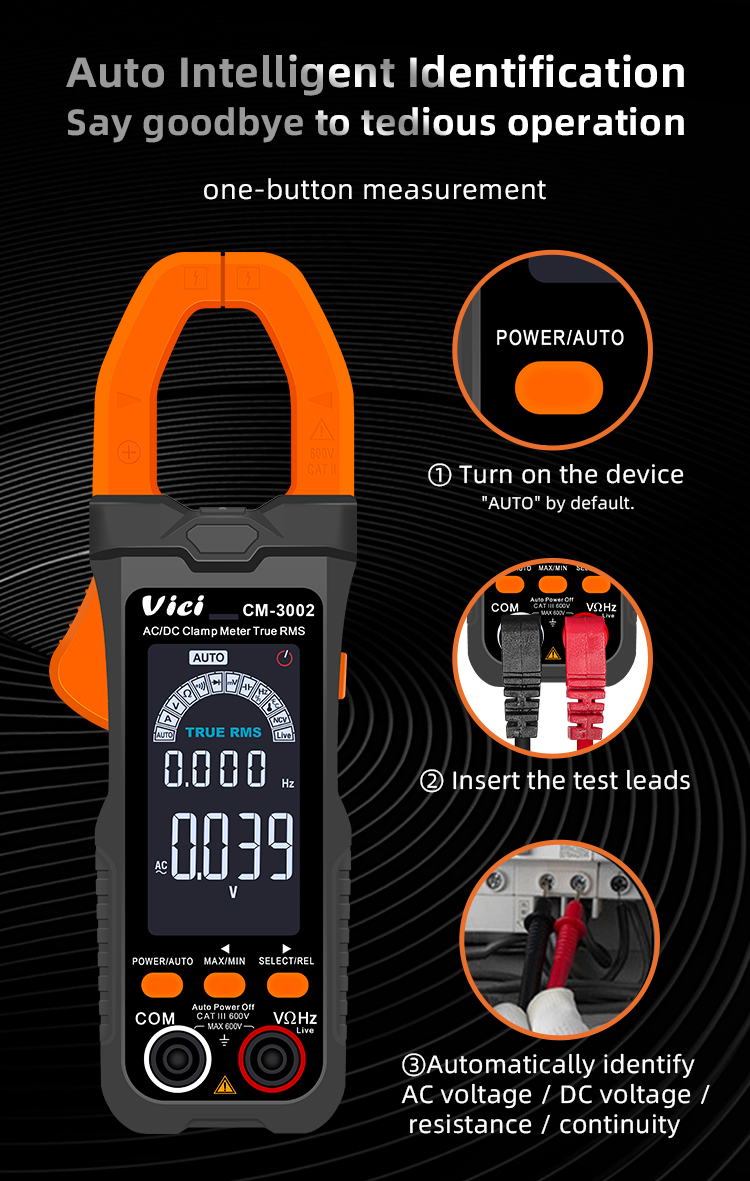

CM-3002 Large color screen smart clamp meter, 800A AC/DC current meter, automatically identifies measurements, AC DC Max 800A, True RMS, NCV, Capacitance, Frequency, Duty-cycle, Temperature, Live tests; with Backlight, Data hold, Clamp lighting functions
CM-3002 smart clamp meter, available to DC voltage, AC voltage, DC current, AC current, resistance, capacitance, frequency, non-contact voltage, temperature, Live, diode and continuity tests; Designed with unit symbol and backlight display, data hold, clamp lighting, auto ranging switch, auto power off and alarm functions.
6000 digits display
Technical Data:
|
Basic function |
Range |
Accuracy |
|
DCV |
600mV/6V/60V/600V |
±(0.5%+5) |
|
ACV |
600mV/6V/60V/600V |
±(0.8%+5) |
|
DCA |
60A/600A/800A |
±(1.5%+5) |
|
ACA |
60A/600A/800A |
±(1.5%+5) |
|
Resistance |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
±(0.8%+2) |
|
Capacitance |
60nF/600nF/6uF/60uF/600uF/6mF/60mF |
±(2.5%+5) |
|
Frequency |
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
±(0.5%+4) |
|
Temperature |
(-40 to 1000 )℃, (-40 to 1832 ) ℉ |
±(1.0%+5) |
Special Function:
|
Model |
CM-3002 |
|
Max display |
6000 |
|
NCV |
√ |
|
TRMS test |
√ |
|
Live test |
√ |
|
Diode test |
√ |
|
Continuity test |
Less than 50Ω |
|
Low battery indicator Low battery indicator |
Approx. less than 2.6 V |
|
Data hold |
√ |
|
Auto power off |
About 15 minutes |
|
TRMS test |
√ |
|
Live test |
√ |
|
Function protection |
√ |
|
Clamp light |
√ |
|
Backlight display |
√ |
|
Input impedance |
10MΩ |
|
Sampling rate |
3 times/s |
|
AC frequency response |
40Hz to 2000Hz |
|
Operation method |
Auto range |
|
Clamp opens |
28mm |
|
Battery |
4.5V (3*AAA battery) |
General Characteristic：
|
Meter color |
Orange and Black |
|
Meter weight |
About 200g (including battery) |
|
Meter size |
185*65*32mm |
|

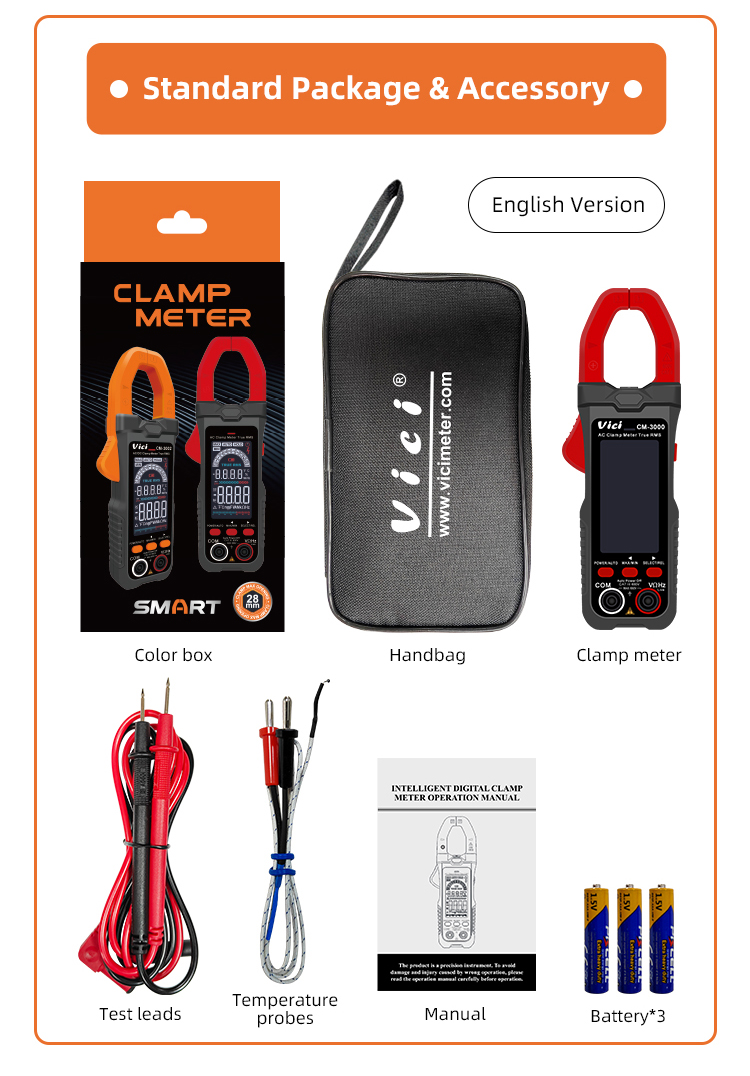

Standard accessory |
Test leads, battery, manual, TP01 temperature probes |
|
Standard packing |
Gift box |
|
Carton size |
41.5×28×47 CM |
|
Standard QTY per carton |
40pcs |
|
G.W per carton |
15kg |
