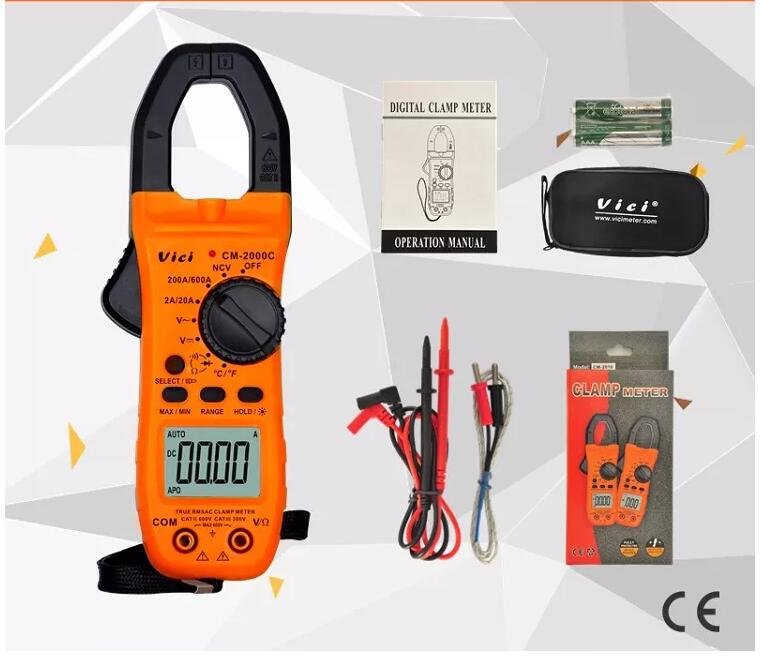

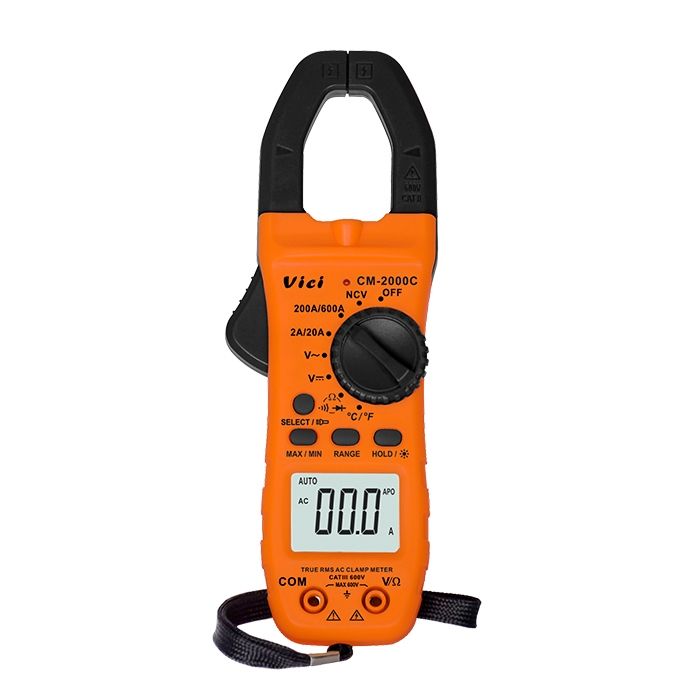

CM-2000C 28mm clamp open, 800A, True RMS, NCV, Temperature tests, Backlight, Clamp lighting function.

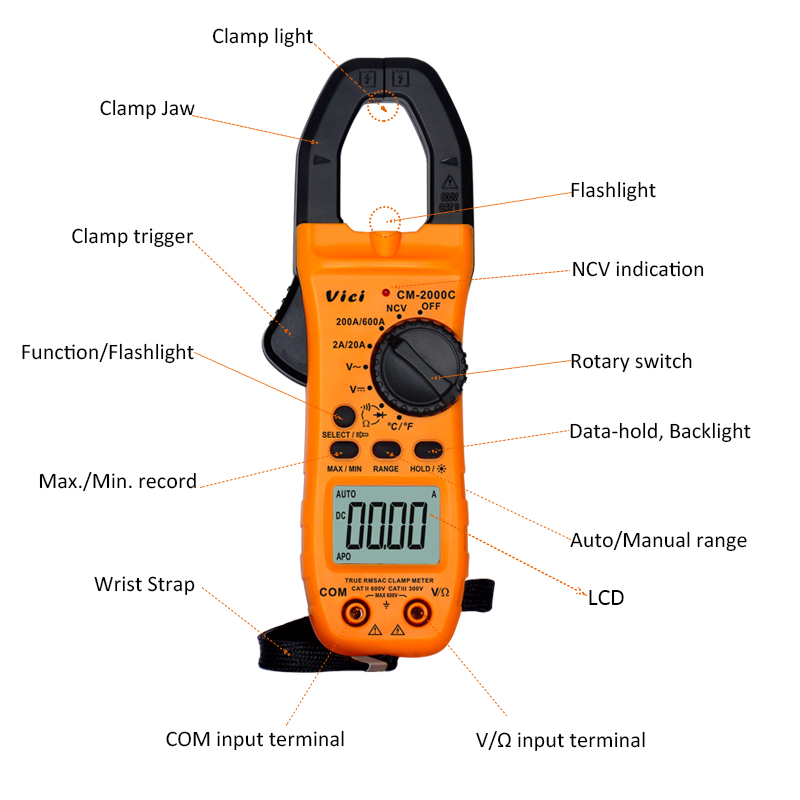

CM-2000C clamp meter, available to DC voltage, AC voltage, AC current, resistance, non-contact voltage, temperature, diode and continuity tests; Designed with unit symbol and backlight display, data hold, clamp lighting, auto ranging switch, auto power and alarm functions.
2000 digits display
2000 digits display
Technical Data:
|
Basic function |
Range |
Accuracy |
|
DCV |
200mV/2V/20V/200V/600V |
+/- (0.5%+5) |
|
ACV |
200mV/2V/20V/200V/600V |
+/- (1.0%+5) |
|
ACA |
2A/20A/200A/600A |
+/- (2.0%+5) |
|
Resistance |
200/2k/20k/200k/2M/20M ohm |
+/- (0.8%+5) |
|
Temperature |
-40℃~1000℃ | -40℉~1832℉ |
+/- (1.0%+5) |
Special Function:
|
Model |
CM-2000C |
|
NCV |
YES |
|
TRMS |
YES |
|
Max./Min. |
YES |
|
Diode test |
YES |
|
Continuity alarm |
Less than 50 ohm |
|
Low battery indication |
Approx. less than2.4 V |
|
Data hold |
YES |
|
Auto power off |
Approx. 15 minutes. |
|
Function protection |
YES |
|
Clamp light display |
YES |
|
Backlight display |
YES |
|
Input impedance |
10M ohm |
|
Sampling rate |
3 times/second |
|
AC frequency response |
Current (40~1000)Hz, Voltage (40~2000)Hz |
|
Operation method |
Manual or auto range |
|
Max. display |
1999 |
|

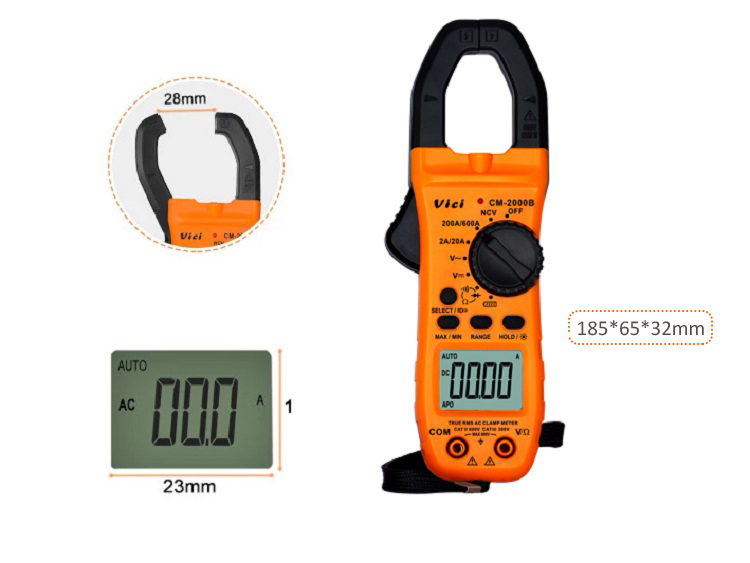

Clamp open |
28mm |
|
Power source |
3V (2pcs #7 batteries) |
