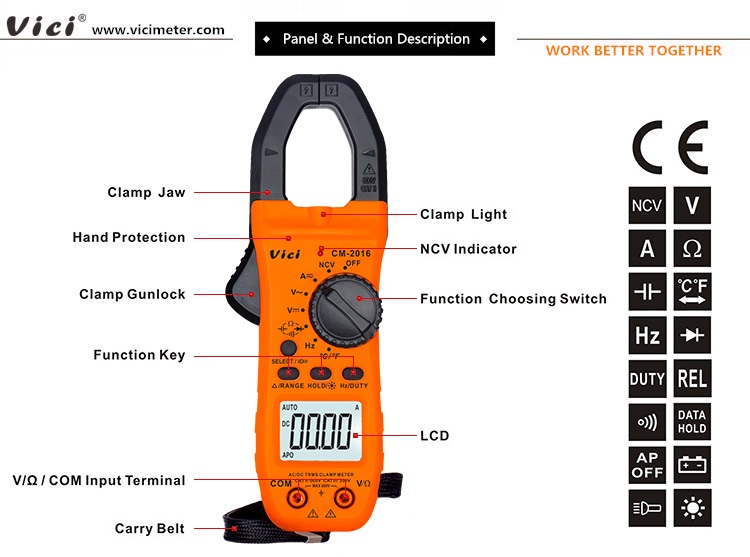

CM-2016 Clamp open 28mm, AC DC Max 800A, True RMS, NCV, Capacitance, Frequency, Temperature tests, Backlight, Clamp lighting function.

    CM-2016 clamp meter, available to DC voltage, AC voltage, DC current, AC current, resistance, capacitance, frequency, non-contact voltage, temperature, diode and continuity tests; Designed with unit symbol and backlight display, data hold, clamp lighting, auto ranging switch, auto power off and alarm functions.
    6000 digits display



    Technical Data:

    Basic function

    Range

    Accuracy

    DCV

    600mV/6V/60V/600V

    +/-  (0.5%+3)

    ACV

    6V/60V/600V

    +/-  (0.8%+5)

    DCA

    60A/600A/800A

    +/-  (1.5%+5)

    ACA

    60A/600A/800A

    +/-  (1.5%+5)

    Resistance

    600/6k/60k/600k/6M/60M ohm

    +/-  (0.8%+3)

    Capacitance

    6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF

    +/-  (3.5%+20)

    Frequency

    10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz

    +/-  (0.1%+3)

    Temperature

    (-40 to 1000 ), (-40 to 1832 )

    +/-  (1.0%+5)



    Special Function:

    Model

    CM-2016

    Diode test

    YES

    Continuity test

    Less than 50 ohm

    Low battery indicator

    Approx. less than 2.6 V

    Data hold

    YES

    NCV test

    YES

    Auto power off

    About 15 minutes

    True RMS test

    YES

    Function protection

    YES

    Clamp light

    YES

    Backlight display

    YES

    Input impedance

    10M ohm

    Sampling rate

    3 times/s

    AC frequency response

    Current 40 to 100Hz / Voltage 40 to 2000Hz

    Operation method

    Auto or manual range

    Max display

    6000

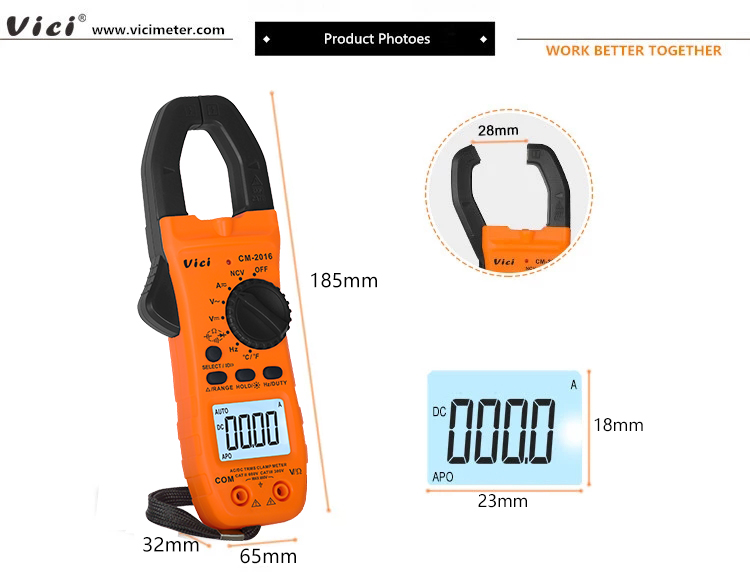

    Clamp opens

    28mm

    Battery

    3V (2*AAA battery)
