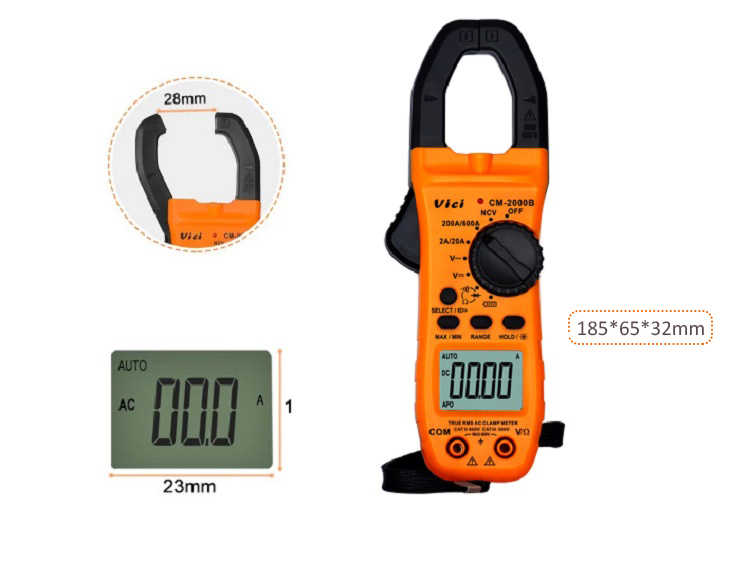

CM-2000B 28mm clamp open, Max 800A, True RMS, NCV, Battery tests, Backlight, Clamp lighting function.
CM-2000B clamp meter, available to DC voltage, AC voltage, AC current, resistance, non-contact voltage, battery, diode and continuity tests; Designed with unit symbol and backlight display, data hold, clamp lighting, auto ranging switch, auto power off abd alarm functions.
2000 digits display
2000 digits display
Technical Data:
|
Basic function |
Range |
Accuracy |
|
DCV |
200mV/2V/20V/200V/600V |
+/- (0.5%+5) |
|
ACV |
2V/20V/200V/600V |
+/- (1.0%+5) |
|
ACA |
2A/20A/200A/600A |
+/- (2.0%+5) |
|
Resistance |
200/2k/20k/200k/2M/20M ohm |
+/- (0.8%+1) |
Special Function:
Model CM-2000B NCV YES TRMS YES Battery voltage test 20V Max./Min. YES Diode test YES Continuity alarm Less than 50 ohm Low battery indication Approx. less than2.4 V Data hold YES Auto power off Approx. 15 minutes. Function protection YES Clamp light display YES Backlight display YES Input impedance 10M ohm Sampling rate 3 times/second AC frequency response Current (50~60)Hz, Voltage (50~400)Hz Operation method Manual or auto range Max. display 1999 Clamp open 28mm Power source 3V (2pcs #7 batteries)
