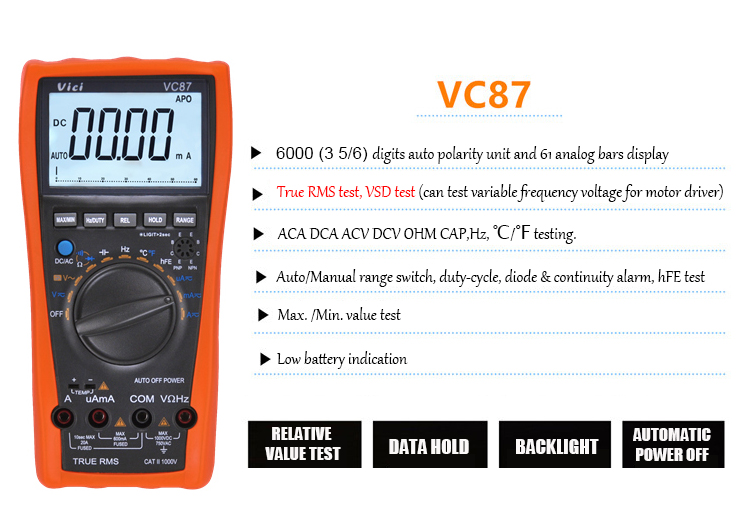

VC87 Non-linear True RMS maximum frequency response 10kHz measurement, Frequency conversion measurement, Analog bar display, Max/Min

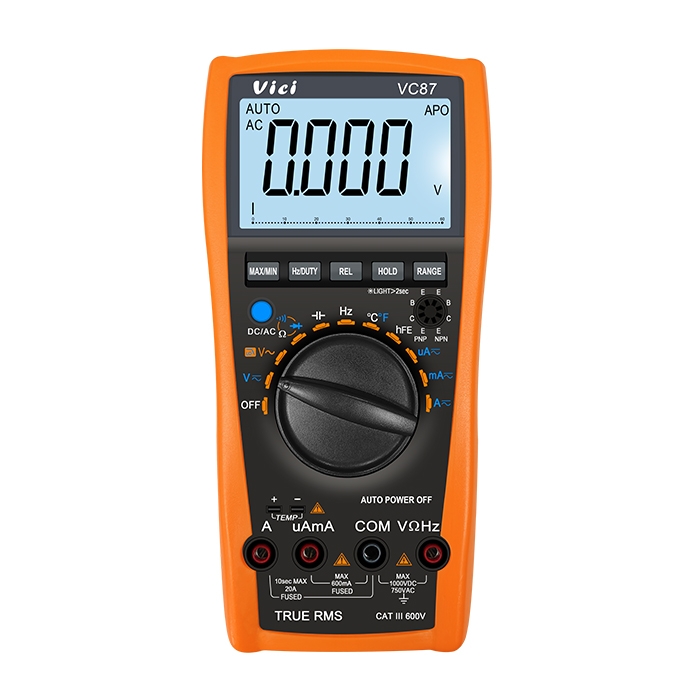

  VC87 multimeter, available to DC voltage, AC voltage, DC current, AC current, resistance, capacitance, frequency, duty-cycle, temperature, diode, continuity and VSD measurements;   Designed with unit symbol , analog bar and backligjt display, max, min tests, data hold, autor ranging switch, auto power and alarm functions.
   6000 digits display


    Technical Data:

    Basic function

    Range

    Accuracy

    DCV

    600mV/6V/60V/600V/1000V

    ±(0.5%+4)

    ACV (TRMS)

    6V/60V/600V/750V

    ±(1.0%+10)

    VSD-V (TRMS)

    6V/60V/600V/750V

    ±(2.0%+10)

    DCA

    600uA/6000uA/60mA/600mA/6A/20A

    ±(1.0%+10)

    ACA (TRMS)

    600uA/6000uA/60mA/600mA/6A//20A

    ±(1.2%+20)

    Resistance

    600Ω/6kΩ/60kΩ/600kΩ/6MΩ/30 MΩ

    ±(0.8%+3)

    Capacitance

    40nF/ 400nF/4uF/40uF/400uF/2000uF

    ±(2.5%+5)

    Frequency

    10Hz30MHz

    ±(0.5%+4)

    Temperature

    -401000

    ±(0.8%+4)

    -401832

    ±(0.8%+5)



    Special Function:



    Feature

    VC87

    VSD

    True RMS

    Diode test

    hFE test

    Continuity test

    Approx. less than 30Ω

    Low battery indication

    Approx less than 5.5V

    Duty cycle measuring

    Data hold

    MAX./MIN. HOLD

    Auto power off

    Approx.15minutes

    Analog bar

    Backlight display

    Function protection

    Input impendence

    10MΩ

    Sampling rate

    3times/s

    AC frequency response

    30Hz-60Hz or 60Hz-200Hz

    Operation method

    Manual or auto range

    Max. display

    6000

    LCD size

    65x41mm

    Battery

    9V(6F22)

    Power consumption

    Quiescent current approx. 4.6mA
