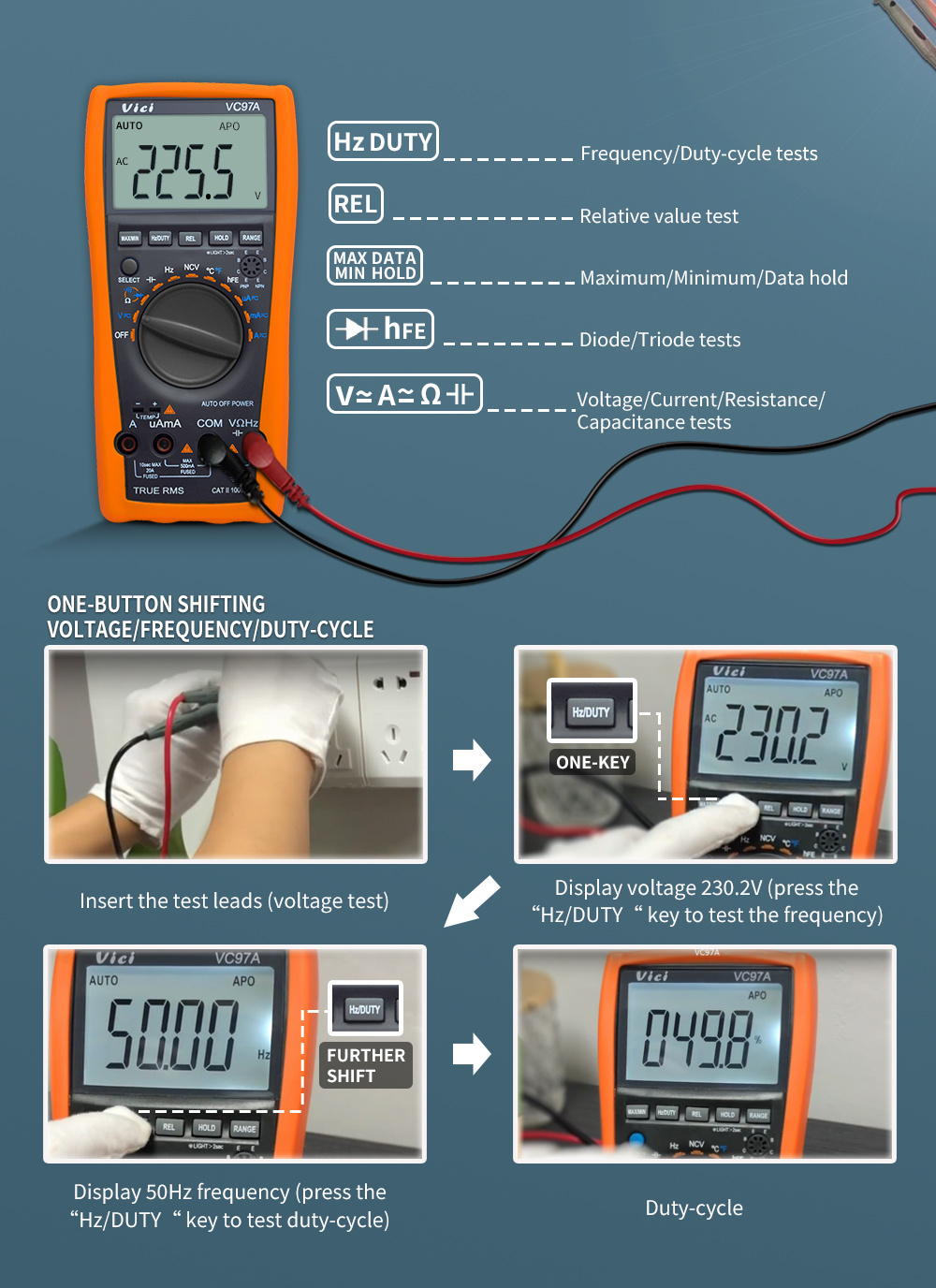

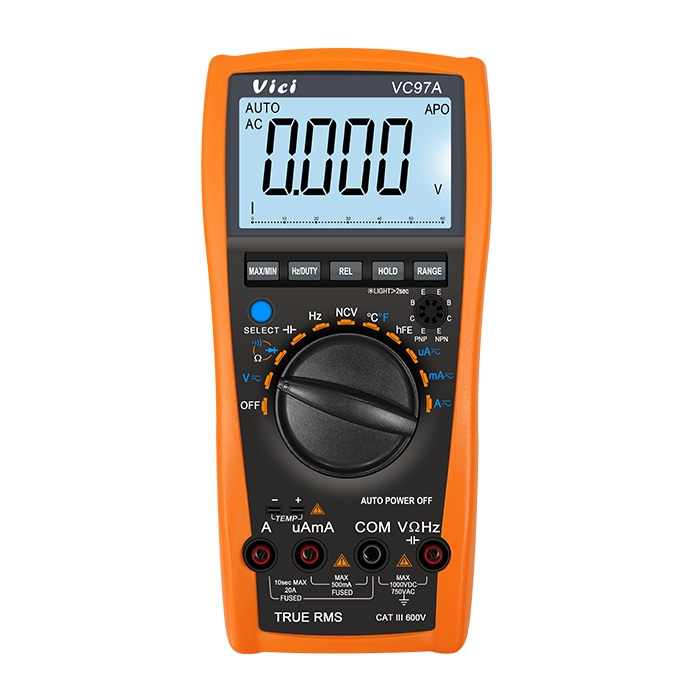

VC97A Max 4000 digits, True RMS, NCV Tests, Max/Min, Data hold, Backlight.

  VC97A multimeter, available to  DC voltage, AC voltage, DC current, AC current, resistance, capacitance, frequency, non-contact voltage detection, duty cycle, temperature, diode and continuity tests; Designed with unit symbol display and maximum and minimum value measurement, data hold, auto ranging switch, auto power off and alarm functions.
  4000 digits display

    Technical Data:

    Basic function

    Range

    Basic accuracy

    DCV

    400mV/4V/40V/400V/1000V

    ±(0.5%+5)

    ACV

    400mV/4V/40V/400V/750V

    ±(0.8%+10)

    DCA

    400uA/4000uA/40mA/400mA/4A/20A

    ±(1.0%+5)

    ACA

    400uA/4000uA/40mA/400mA/4A/20A

    ±(1.5%+10)

    Resistance

    400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ

    ±(0.8%+2)

    Capacitance

    40nF/400nF/ /4uF/40uF/400uF/4mF/40mF

    ±(2.5%+5)

    Frequency

    10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz

    ±(0.5%+4)

    Temperature

    -40℉ ~ 1832

    ±(1.0%+5)

    -40℃ ~ 1000

    ±(1.0%+5)


    Special Function:

    Model

    VC97A

    True RMS

    NCV Function

    Backlight display

    Diode test

    hFE test

    Continuity test

    Approx. less than 50Ω

    Low battery indication

    Approx less than 2.4V

    Duty cycle measuring

    Data hold

    MAX, MIN, HOLD

    Auto power off

    Approx.15minutes

    Function protection

    Input impendence

    10MΩ

    Sampling rate

    3times/s

    AC frequency response

    40-400Hz

    Operation way

    Manual or auto range

    Max. display

    4000

    LCD size

    65x41mm

    Battery

    2 X 1.5 AAA

    Power consumption

    Quiescent current approx. 2mA
