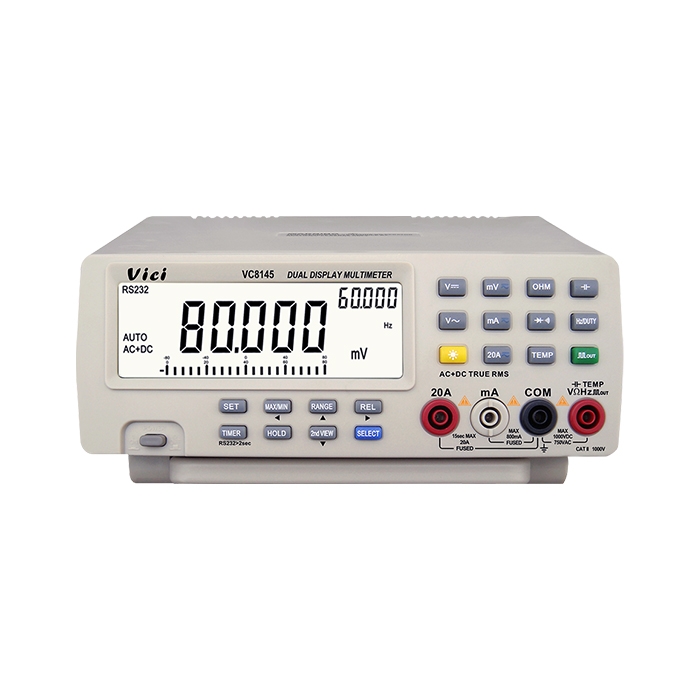

VC8145 Max 80000 digits, Broadband True RMS, Quasi-function generator, Signal analysis, Up/Low limit tests, RS-232 computer interface multimeter


l  Multiple display: primary display 80000, secondary display 80000, analog 21 bars display, unit and function symbols display

l  Over 50 kinds of measurements  - a real multimeter

l  Max 1000MHz measuring frequency

l  18 types frequency, 1%─99% selectable Duty-cycle, 1800 waves output  Quasi-function generator

l  Signal analysis:simultaneous measure (AC+DC),(AC+Hz),(DC+dBm),(dBm+Hz),(Hz+Duty),(℃+℉)

l  Resistance test range 0.01Ω-80MΩ

l  Capacitance test range  1PF-100μF

l  Temperature test range:  -50℃─1372℃,-58℉─2502℉

l  Decibel measurement: 20 load resistors are available

l  Automatically update and hold data

l  Automatically hold the positive/negative peak values

l  36-hour dynamic record: MAX, MIN, AVG, MAX-MIN

l  REL△, REL% measurement

l  0.1% - 99.9% pulse spread ratio test

l  Set the upper and lower limit of the area value measurement function

l  Photo-electricity insulation RS-232 computer interface

l  Timing measurement function

l  Backlight display

    Technical Data:

    Basic function

    Range

    Accuracy

    DCV

    80mV/800mV/8V/80V/800V/1000V

    ±(0.05%+5)

    ACV

    80mV/800mV/8V/80V/750V

    ±(0.5%+50)

    DCA

    80mA/800mA/8A/20A

    ±(0.2%+10)

    ACA

    80mA/800mA/8A/20A

    ±(0.2%+10)

    Resistance

    800Ω/8kΩ/80kΩ/800kΩ/8MΩ/80MΩ

    ±(0.3%+10)

    Frequency

    0.5Hz~8MHz

    ±(0.05%+2)

    Capacitance

    1nF /10nF/100nF/1uF/10uF/100uF

    ±(2.5%+50)

    Temperature

    -50~1372 / -58℉~2502

    ±(1.5%+10)

    Square Wave

    3V / 0.5Hz~5kHz / 1%~99%

    ±0.05%



    Special Function:

    Model

    VC8145

    Diode

    AC+DC measuring

    Continuity test

    Overloading protection

    Input Impedance

    10MΩ

    Sampling frequency

    4times/sec.   Analog bar 40 times/sec.

    AC frequency response

    40Hz-50kHz

    Operation way

    Auto range

    Max display

    80000

    Computer interface

    Photo-electricity insulation RS-232

    Power

    AC220V/110V     50Hz/60Hz
