VC9802A+ Current 200uA, Max 200uF capacitance, Max 200MΩ resistance, Anti-high pressure ignition design.

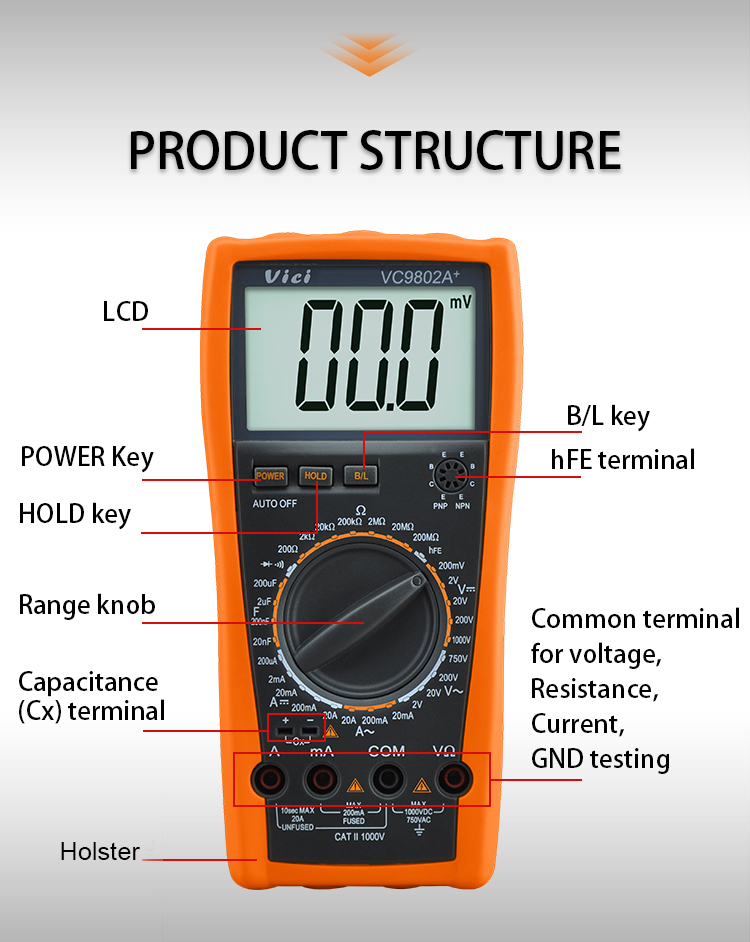

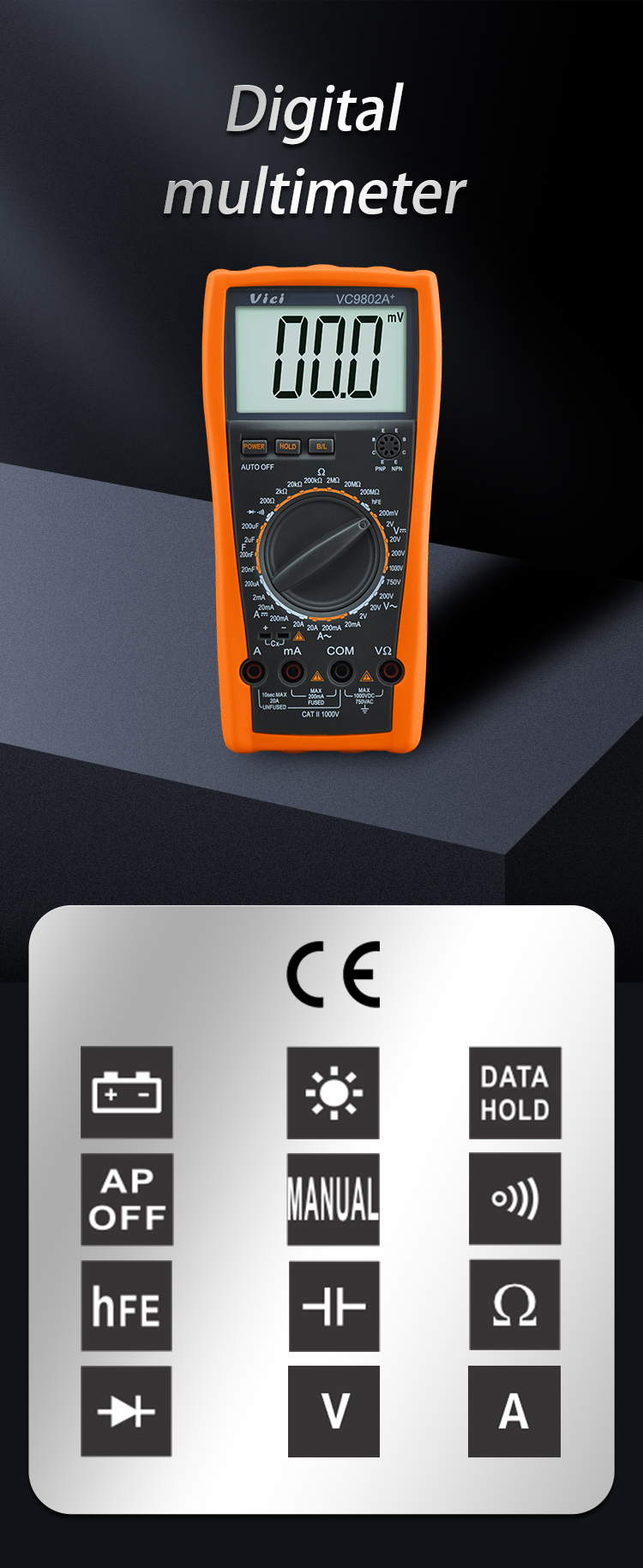

VC9802A+ multimeter is available to DC voltage, AC voltage, DC current, AC current, Resistance, Capacitance, hFE, Diode anc continuity alarm tests ; Designed with unit symbol, backlight, data hold, auto power off and protection function for error operations.
2000 digits display.
2000 digits display.
Technical Data:
|
Basic function |
Range |
Basic accuracy |
|
DCV |
200mV/2V/20V/200V/1000V |
±(0.5%+3) |
|
ACV |
2V/20V/200V/750V |
±(0.8%+5) |
|
DCA |
200uA/2mA/20mA/200mA/ |
±(0.8%+3) |
|
ACA |
20mA/20mA/ |
±(1.0%+5) |
|
Resistance |
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ |
±(0.8%+5) |
|
Capacitance |
20nF/200nF/2uF/200uF |
±(2.0%+20) |
Special Function:
|
Model |
VC |
|
Diode test |
√ |
|
hFE test |
√ |
|
Continuity alarming |
Approx. less than 30Ω |
|
Low battery indication |
Approx less than 7.5V |
|
Data hold |
√ |
|
Auto power off |
Approx. 30 minutes |
|
Backlight display |
Approx. 10 seconds |
|
Function protect |
√ |
|
Anti-shock protect |
√ |
|
Input impendence |
10MΩ |
|
Sampling rate |
3times/s |
|
AC frequency response |
40-400Hz |
|
Operation way |
Manual range |
|
Max. display |
1999 |
|

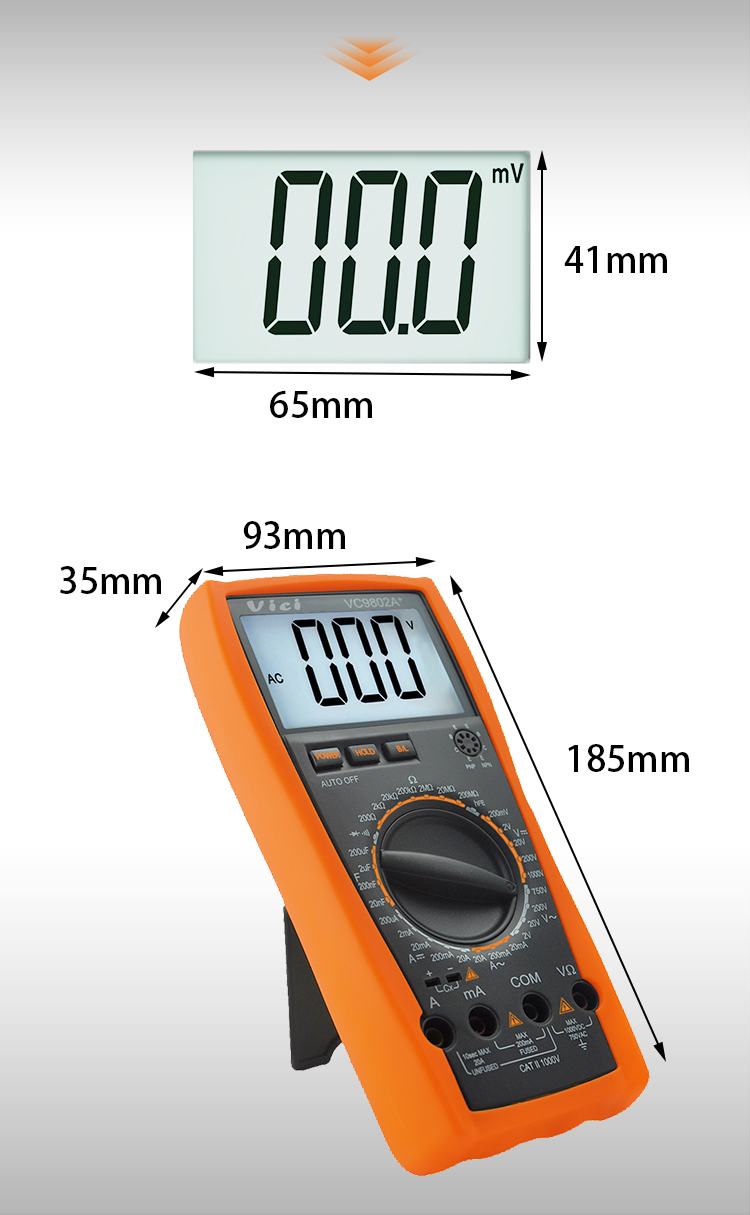

LCD size |
65× |
|
Battery |
9V ( |
|
Power consumption |
Quiescent current approx. 3mA |
